1. Essential Structure and Architectural Qualities of Quartz Ceramics
1.1 Chemical Purity and Crystalline-to-Amorphous Transition

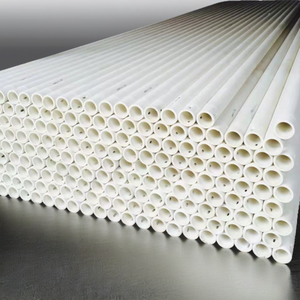

(Quartz Ceramics)
Quartz porcelains, additionally referred to as merged silica or merged quartz, are a class of high-performance inorganic products originated from silicon dioxide (SiO ₂) in its ultra-pure, non-crystalline (amorphous) form.
Unlike standard ceramics that count on polycrystalline structures, quartz ceramics are distinguished by their full absence of grain borders as a result of their glazed, isotropic network of SiO ₄ tetrahedra adjoined in a three-dimensional random network.
This amorphous framework is achieved with high-temperature melting of all-natural quartz crystals or synthetic silica forerunners, adhered to by quick air conditioning to avoid crystallization.
The resulting product includes typically over 99.9% SiO ₂, with trace impurities such as alkali steels (Na ⁺, K ⁺), light weight aluminum, and iron maintained parts-per-million levels to protect optical clearness, electric resistivity, and thermal efficiency.
The absence of long-range order gets rid of anisotropic behavior, making quartz ceramics dimensionally steady and mechanically uniform in all directions– a vital advantage in accuracy applications.
1.2 Thermal Habits and Resistance to Thermal Shock
Among the most defining features of quartz ceramics is their incredibly reduced coefficient of thermal expansion (CTE), generally around 0.55 × 10 ⁻⁶/ K between 20 ° C and 300 ° C.
This near-zero expansion arises from the adaptable Si– O– Si bond angles in the amorphous network, which can adjust under thermal tension without breaking, enabling the product to hold up against quick temperature changes that would certainly fracture traditional porcelains or metals.
Quartz porcelains can sustain thermal shocks exceeding 1000 ° C, such as direct immersion in water after heating to red-hot temperatures, without breaking or spalling.
This home makes them indispensable in atmospheres entailing duplicated home heating and cooling down cycles, such as semiconductor handling heaters, aerospace components, and high-intensity illumination systems.
Additionally, quartz ceramics keep architectural stability up to temperature levels of roughly 1100 ° C in constant solution, with temporary exposure tolerance approaching 1600 ° C in inert atmospheres.
( Quartz Ceramics)
Beyond thermal shock resistance, they display high softening temperatures (~ 1600 ° C )and excellent resistance to devitrification– though prolonged direct exposure over 1200 ° C can initiate surface area crystallization into cristobalite, which might compromise mechanical stamina as a result of volume changes throughout phase transitions.
2. Optical, Electrical, and Chemical Characteristics of Fused Silica Equipment
2.1 Broadband Openness and Photonic Applications
Quartz ceramics are renowned for their phenomenal optical transmission throughout a broad spectral range, prolonging from the deep ultraviolet (UV) at ~ 180 nm to the near-infrared (IR) at ~ 2500 nm.
This openness is allowed by the absence of impurities and the homogeneity of the amorphous network, which reduces light spreading and absorption.
High-purity artificial merged silica, produced by means of flame hydrolysis of silicon chlorides, attains also better UV transmission and is made use of in critical applications such as excimer laser optics, photolithography lenses, and space-based telescopes.
The material’s high laser damages limit– standing up to break down under intense pulsed laser irradiation– makes it optimal for high-energy laser systems utilized in fusion research and industrial machining.
In addition, its low autofluorescence and radiation resistance make sure reliability in scientific instrumentation, including spectrometers, UV treating systems, and nuclear monitoring tools.
2.2 Dielectric Efficiency and Chemical Inertness
From an electrical viewpoint, quartz porcelains are superior insulators with quantity resistivity exceeding 10 ¹⁸ Ω · centimeters at area temperature level and a dielectric constant of roughly 3.8 at 1 MHz.
Their reduced dielectric loss tangent (tan δ < 0.0001) guarantees very little power dissipation in high-frequency and high-voltage applications, making them ideal for microwave windows, radar domes, and insulating substratums in electronic settings up.
These properties stay stable over a broad temperature level range, unlike many polymers or conventional porcelains that break down electrically under thermal tension.
Chemically, quartz ceramics show impressive inertness to most acids, including hydrochloric, nitric, and sulfuric acids, because of the security of the Si– O bond.
Nevertheless, they are at risk to strike by hydrofluoric acid (HF) and solid alkalis such as warm sodium hydroxide, which damage the Si– O– Si network.
This discerning sensitivity is exploited in microfabrication processes where controlled etching of merged silica is required.
In aggressive industrial environments– such as chemical handling, semiconductor damp benches, and high-purity fluid handling– quartz ceramics function as liners, sight glasses, and reactor elements where contamination need to be minimized.
3. Production Processes and Geometric Design of Quartz Ceramic Parts
3.1 Melting and Forming Strategies
The production of quartz ceramics includes a number of specialized melting approaches, each tailored to particular pureness and application needs.
Electric arc melting uses high-purity quartz sand melted in a water-cooled copper crucible under vacuum or inert gas, generating large boules or tubes with exceptional thermal and mechanical residential or commercial properties.
Flame blend, or combustion synthesis, involves shedding silicon tetrachloride (SiCl ₄) in a hydrogen-oxygen flame, transferring great silica fragments that sinter into a clear preform– this technique yields the greatest optical quality and is used for artificial merged silica.
Plasma melting offers an alternate route, supplying ultra-high temperatures and contamination-free processing for specific niche aerospace and protection applications.
As soon as thawed, quartz ceramics can be shaped with precision casting, centrifugal creating (for tubes), or CNC machining of pre-sintered spaces.
Due to their brittleness, machining requires ruby tools and cautious control to prevent microcracking.
3.2 Precision Construction and Surface Area Finishing
Quartz ceramic components are often fabricated into complex geometries such as crucibles, tubes, rods, home windows, and custom-made insulators for semiconductor, photovoltaic, and laser sectors.
Dimensional accuracy is important, especially in semiconductor production where quartz susceptors and bell jars must maintain specific placement and thermal uniformity.
Surface area ending up plays an essential duty in performance; refined surfaces lower light scattering in optical elements and reduce nucleation websites for devitrification in high-temperature applications.
Etching with buffered HF services can generate regulated surface area appearances or eliminate harmed layers after machining.
For ultra-high vacuum (UHV) systems, quartz porcelains are cleaned up and baked to get rid of surface-adsorbed gases, making certain minimal outgassing and compatibility with delicate procedures like molecular light beam epitaxy (MBE).
4. Industrial and Scientific Applications of Quartz Ceramics
4.1 Function in Semiconductor and Photovoltaic Manufacturing
Quartz ceramics are fundamental materials in the construction of incorporated circuits and solar batteries, where they function as heater tubes, wafer watercrafts (susceptors), and diffusion chambers.
Their capability to stand up to high temperatures in oxidizing, reducing, or inert atmospheres– combined with low metallic contamination– ensures procedure purity and return.
Throughout chemical vapor deposition (CVD) or thermal oxidation, quartz elements preserve dimensional stability and resist bending, protecting against wafer damage and imbalance.
In solar production, quartz crucibles are made use of to grow monocrystalline silicon ingots via the Czochralski procedure, where their pureness directly influences the electric high quality of the last solar batteries.
4.2 Usage in Illumination, Aerospace, and Analytical Instrumentation
In high-intensity discharge (HID) lamps and UV sterilization systems, quartz ceramic envelopes include plasma arcs at temperature levels surpassing 1000 ° C while transferring UV and noticeable light successfully.
Their thermal shock resistance avoids failing during fast lamp ignition and closure cycles.
In aerospace, quartz ceramics are utilized in radar home windows, sensing unit real estates, and thermal protection systems as a result of their reduced dielectric consistent, high strength-to-density proportion, and security under aerothermal loading.
In logical chemistry and life scientific researches, integrated silica blood vessels are essential in gas chromatography (GC) and capillary electrophoresis (CE), where surface area inertness prevents example adsorption and makes sure exact splitting up.
Additionally, quartz crystal microbalances (QCMs), which depend on the piezoelectric buildings of crystalline quartz (unique from fused silica), utilize quartz porcelains as protective real estates and protecting supports in real-time mass noticing applications.
In conclusion, quartz ceramics stand for a distinct intersection of severe thermal resilience, optical openness, and chemical pureness.
Their amorphous structure and high SiO ₂ web content make it possible for efficiency in settings where conventional materials fall short, from the heart of semiconductor fabs to the side of space.
As innovation advances towards higher temperatures, greater accuracy, and cleaner procedures, quartz ceramics will continue to function as an essential enabler of development throughout scientific research and industry.
