1. Introduction to Oil Submersed Transformers
In the intricate web of our modern-day electrical grid, transformers play an indispensable function, quietly stepping voltage up and down to ensure electricity can be transferred efficiently over cross countries and dispersed securely to our homes and markets. Amongst the numerous kinds offered, the oil immersed transformer stands as a testament to proven dependability and toughness. For years, these workhorses have created the foundation of power systems worldwide.
An oil immersed transformer is a type of electric transformer that makes use of a customized shielding oil as both a coolant and a shielding medium. This layout is predominantly used for medium to high-power applications, making it a keystone of electric facilities. This overview delves deep right into the globe of oil immersed power transformers and oil submersed distribution transformers, discovering their technology, applications, and their developing function in an age of digitalization and renewable energy.
1.1 What is an Oil Immersed Transformer?
At its core, an oil submersed transformer contains a magnetic core and copper or light weight aluminum windings housed inside a secured storage tank loaded with protecting oil. The key function of the oil is twofold:
1. Insulation: The oil has high dielectric strength, properly insulating the high-voltage windings from the transformer’s core and grounded storage tank. This avoids short circuits and electrical breakdowns.
2. Air conditioning: As the transformer operates, the windings create significant warm due to I ² R losses. The distributing oil absorbs this warm, convects it to the transformer’s storage tank wall surfaces, and dissipates it right into the surrounding air. Bigger systems often include radiators or fins to increase the surface area for much more reliable cooling.
This dual-purpose use oil makes the oil immersed transformer remarkably reliable and robust, capable of dealing with high loads and enduring transient overloads better than several dry-type choices.
1.2 Oil Immersed Power Transformer vs. Oil Immersed Circulation Transformer
While all these systems are oil submersed transformers, they offer distinctive functions within the power system network. Comprehending the distinction is critical.
An oil immersed power transformer is a heavyweight, usually used in transmission networks at generating stations and major substations. Their primary duty is to “step-up” the voltage created at the nuclear power plant to incredibly high levels (e.g., 138 kV, 230 kV, 500 kV and above) for effective long-distance transmission, and to “step-down” the voltage at receiving substations for further circulation. They are identified by their very high power scores (commonly exceeding 100 MVA), complicated building and construction, and on-load faucet changers for voltage regulation.
An oil engaged circulation transformer, on the other hand, carries out the final step in the power delivery chain. It takes the medium voltage from the transmission lines (e.g., 11 kV, 33 kV) and steps it down to the reduced voltages (e.g., 400/230 V) made use of by industrial and household customers. You commonly find them on utility posts (pole-mounted) or on ground-level pads (pad-mounted). They are smaller sized, have lower power scores (generally up to 2,500 kVA), and are created for maximum performance at reduced, extra constant loads.

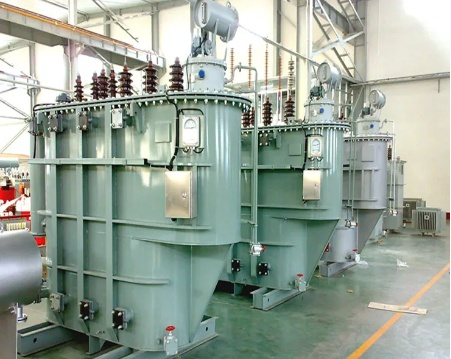

(Oil immersed power transformer)
2. Secret Benefits of Oil Immersed Transformers
The long-lasting appeal of the oil immersed transformer is not unintentional. It supplies a collection of engaging benefits that make it the recommended option for lots of demanding applications.
2.1 Superior Cooling and Overload Capability
The exceptional thermal capacity of oil compared to air permits an oil submersed power transformer to handle and dissipate heat far more efficiently. This equates to a higher overload capability. During periods of top electrical power need, an oil immersed transformer can deal with short-lived overloads without suffering damages, an important feature for maintaining grid security. The oil’s blood circulation makes certain also heat distribution, avoiding local locations that can break down insulation over time.
2.2 Boosted Insulation and Long Life Span
The combination of top quality mineral oil and carefully fertilized paper insulation produces a dielectric system of extraordinary stamina. This durable insulation system shields the transformer from voltage surges and transients, adding to a functional life-span that can include 30-40 years or more with correct maintenance. The sealed container likewise shields the interior elements from wetness, dirt, and various other atmospheric impurities.
2.3 High Performance and Cost-Effectiveness
For high-power applications, the oil immersed transformer is commonly one of the most affordable selection. The products used– mineral oil, steel container, and copper/aluminum windings– provide a desirable balance of performance and price. The high effectiveness of these transformers, especially at their rated tons, causes reduced power losses over their life time, leading to significant price financial savings for utility firms and huge industrial users.
3. Hot Subjects and Future Trends
The globe of oil immersed transformers is not fixed. It is constantly progressing to meet brand-new challenges and incorporate with modern-day technologies.
3.1 Naturally Degradable and Fire-Resistant Oils
Environmental and safety problems are driving a significant change far from standard mineral oil. The market is rapidly embracing oil submersed transformers filled with biodegradable esters (synthetic or natural). These oils supply a greater fire point (making them K-class fire-resistant), are less hazardous, and are conveniently naturally degradable, substantially reducing the environmental influence in case of a leakage. This trend is making oil submersed distribution transformers much safer for installation in urban locations and ecologically sensitive locations.
3.2 Combination with Smart Grids and IoT
The contemporary oil engaged power transformer is becoming an intelligent node in the wise grid. Sensing units are being integrated to keep track of crucial criteria in real-time, consisting of:
Dissolved Gas Evaluation (DGA): Spotting fault gases generated within the oil to forecast incipient mistakes.
Temperature Monitoring: Tracking top-oil and hotspot temperature levels.
Load and Power Quality Monitoring.
This information, transmitted through IoT (Internet of Points) platforms, enables anticipating upkeep, protects against unplanned outages, and enhances transformer usage and life-span.
3.3 Sustaining the Renewable Resource Shift
The international promote renewables is creating new demand for oil submersed transformers. Large-scale solar farms and wind power installments require robust oil immersed power transformers to step up the produced voltage to transmission degrees. Moreover, the intermittent nature of renewables areas greater stress and anxiety on grid components, and the proven integrity and overload ability of oil immersed transformers make them suitable for this crucial function.
4. Option and Upkeep Ideal Practices
Selecting the best transformer and preserving it properly is crucial to a trustworthy power system.
4.1 How to Select the Right Oil Immersed Transformer
Choosing in between an oil immersed power transformer and an oil submersed distribution transformer depends upon the application. Trick considerations include:
1. Voltage Level and kVA Ranking: Match the transformer’s requirements to your system’s requirements.
2. Application: Transmission substation, plant, or business circulation.
3. Place: Indoor vs. outdoor, environmental problems, and fire safety regulations (which might influence the selection of insulating oil).
4. Performance Specifications: Adhere to regional efficiency standards like DOE (U.S.A.) or EU CoC (Europe).
5. Spending plan: Consider both the first resources expense and the total expense of ownership, consisting of losses.

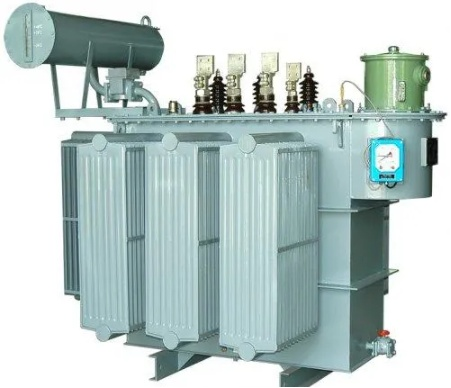

(Oil immersed distribution transformer)
4.2 Crucial Maintenance for Longevity
Positive upkeep is vital for any kind of oil submersed transformer. A detailed program ought to consist of:
1. Regular Oil Sampling and Testing: Regular DGA and testing of dielectric toughness and dampness web content are the most reliable methods to assess the health of the transformer.
2. Bushing and Insulation Assessment: Aesthetic checks for splits, contamination, or leakages.
3. Faucet Changer Maintenance: Regular inspection and maintenance of on-load or off-load faucet changers.
4. Keep it Tidy and Dry: Making certain the tank outside, radiators, and breathers are clean and useful.
The oil immersed transformer, in its functions as both a high-capacity oil submersed power transformer and an ubiquitous oil immersed circulation transformer, stays an irreplaceable element of our international power infrastructure. Its tried and tested style, combined with continuous innovations in protecting fluids and digital surveillance, guarantees it will certainly remain to be a dependable, reliable, and smart solution for powering our globe for decades to come. As we develop the grids of the future, incorporating even more renewables and electronic intelligence, the robust and versatile oil immersed transformer will unquestionably be at the heart of it.
