1. Material Scientific Research and Structural Quality
1.1 Crystal Framework and Chemical Security

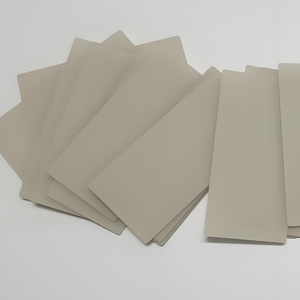

(Aluminum Nitride Ceramic Substrates)
Aluminum nitride (AlN) is a large bandgap semiconductor ceramic with a hexagonal wurtzite crystal framework, made up of alternating layers of light weight aluminum and nitrogen atoms bound via solid covalent interactions.
This robust atomic arrangement endows AlN with outstanding thermal stability, keeping architectural honesty approximately 2200 ° C in inert atmospheres and resisting decomposition under extreme thermal biking.
Unlike alumina (Al ₂ O ₃), AlN is chemically inert to thaw steels and lots of reactive gases, making it ideal for rough environments such as semiconductor processing chambers and high-temperature heaters.
Its high resistance to oxidation– forming just a slim safety Al two O two layer at surface upon direct exposure to air– makes sure lasting reliability without substantial deterioration of bulk residential or commercial properties.
Furthermore, AlN exhibits exceptional electrical insulation with a resistivity exceeding 10 ¹⁴ Ω · cm and a dielectric toughness above 30 kV/mm, vital for high-voltage applications.
1.2 Thermal Conductivity and Electronic Features
One of the most specifying attribute of light weight aluminum nitride is its superior thermal conductivity, typically ranging from 140 to 180 W/(m · K )for commercial-grade substrates– over 5 times greater than that of alumina (≈ 30 W/(m · K)).
This efficiency comes from the reduced atomic mass of nitrogen and light weight aluminum, combined with solid bonding and marginal point flaws, which enable reliable phonon transportation with the latticework.
However, oxygen contaminations are especially destructive; even trace quantities (above 100 ppm) substitute for nitrogen sites, producing light weight aluminum jobs and scattering phonons, thereby substantially reducing thermal conductivity.
High-purity AlN powders synthesized using carbothermal decrease or direct nitridation are vital to accomplish ideal warm dissipation.
Despite being an electrical insulator, AlN’s piezoelectric and pyroelectric residential properties make it important in sensors and acoustic wave tools, while its large bandgap (~ 6.2 eV) sustains procedure in high-power and high-frequency digital systems.
2. Fabrication Processes and Manufacturing Difficulties

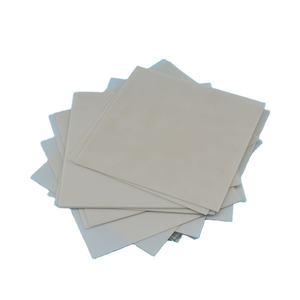

( Aluminum Nitride Ceramic Substrates)
2.1 Powder Synthesis and Sintering Methods
Making high-performance AlN substrates begins with the synthesis of ultra-fine, high-purity powder, commonly accomplished with responses such as Al ₂ O FIVE + 3C + N TWO → 2AlN + 3CO (carbothermal decrease) or straight nitridation of aluminum metal: 2Al + N ₂ → 2AlN.
The resulting powder needs to be thoroughly crushed and doped with sintering help like Y ₂ O TWO, CaO, or uncommon earth oxides to advertise densification at temperature levels in between 1700 ° C and 1900 ° C under nitrogen environment.
These additives create short-term fluid stages that boost grain limit diffusion, enabling full densification (> 99% theoretical thickness) while lessening oxygen contamination.
Post-sintering annealing in carbon-rich atmospheres can even more reduce oxygen content by removing intergranular oxides, thus restoring peak thermal conductivity.
Achieving uniform microstructure with controlled grain dimension is crucial to stabilize mechanical strength, thermal efficiency, and manufacturability.
2.2 Substrate Shaping and Metallization
Once sintered, AlN porcelains are precision-ground and lapped to satisfy limited dimensional resistances needed for electronic product packaging, commonly down to micrometer-level monotony.
Through-hole exploration, laser cutting, and surface patterning make it possible for integration into multilayer bundles and crossbreed circuits.
An essential action in substrate construction is metallization– the application of conductive layers (normally tungsten, molybdenum, or copper) through processes such as thick-film printing, thin-film sputtering, or straight bonding of copper (DBC).
For DBC, copper aluminum foils are adhered to AlN surfaces at elevated temperatures in a regulated ambience, forming a strong interface appropriate for high-current applications.
Different methods like active metal brazing (AMB) utilize titanium-containing solders to improve attachment and thermal exhaustion resistance, specifically under repeated power cycling.
Proper interfacial engineering makes sure reduced thermal resistance and high mechanical dependability in running tools.
3. Performance Advantages in Electronic Systems
3.1 Thermal Management in Power Electronic Devices
AlN substrates excel in handling heat produced by high-power semiconductor tools such as IGBTs, MOSFETs, and RF amplifiers utilized in electric cars, renewable energy inverters, and telecoms framework.
Efficient warmth removal stops localized hotspots, lowers thermal stress and anxiety, and expands tool lifetime by alleviating electromigration and delamination risks.
Contrasted to typical Al two O five substratums, AlN enables smaller sized plan dimensions and higher power densities due to its premium thermal conductivity, enabling developers to push performance boundaries without jeopardizing reliability.
In LED illumination and laser diodes, where joint temperature level straight influences efficiency and shade stability, AlN substrates dramatically boost luminescent output and functional life expectancy.
Its coefficient of thermal development (CTE ≈ 4.5 ppm/K) additionally carefully matches that of silicon (3.5– 4 ppm/K) and gallium nitride (GaN, ~ 5.6 ppm/K), reducing thermo-mechanical stress throughout thermal biking.
3.2 Electrical and Mechanical Integrity
Beyond thermal performance, AlN supplies low dielectric loss (tan δ < 0.0005) and stable permittivity (εᵣ ≈ 8.9) across a broad regularity variety, making it perfect for high-frequency microwave and millimeter-wave circuits.
Its hermetic nature prevents moisture access, getting rid of rust threats in moist environments– an essential advantage over natural substratums.
Mechanically, AlN has high flexural toughness (300– 400 MPa) and solidity (HV ≈ 1200), making certain toughness throughout handling, assembly, and area operation.
These qualities collectively contribute to improved system dependability, lowered failing rates, and lower overall cost of ownership in mission-critical applications.
4. Applications and Future Technological Frontiers
4.1 Industrial, Automotive, and Protection Systems
AlN ceramic substrates are now basic in innovative power modules for commercial electric motor drives, wind and solar inverters, and onboard battery chargers in electric and hybrid lorries.
In aerospace and protection, they support radar systems, electronic war systems, and satellite interactions, where efficiency under extreme problems is non-negotiable.
Clinical imaging devices, consisting of X-ray generators and MRI systems, additionally take advantage of AlN’s radiation resistance and signal integrity.
As electrification patterns speed up across transportation and energy sectors, need for AlN substrates continues to grow, driven by the requirement for portable, reliable, and trusted power electronic devices.
4.2 Arising Integration and Sustainable Development
Future advancements focus on incorporating AlN right into three-dimensional packaging designs, embedded passive components, and heterogeneous integration systems incorporating Si, SiC, and GaN tools.
Study right into nanostructured AlN films and single-crystal substratums intends to further boost thermal conductivity toward academic limits (> 300 W/(m · K)) for next-generation quantum and optoelectronic gadgets.
Initiatives to decrease manufacturing prices with scalable powder synthesis, additive manufacturing of complex ceramic frameworks, and recycling of scrap AlN are gaining momentum to boost sustainability.
Additionally, modeling tools making use of limited aspect analysis (FEA) and artificial intelligence are being used to enhance substrate design for certain thermal and electric lots.
To conclude, light weight aluminum nitride ceramic substratums stand for a cornerstone modern technology in modern-day electronics, uniquely bridging the gap in between electric insulation and extraordinary thermal transmission.
Their role in enabling high-efficiency, high-reliability power systems underscores their calculated significance in the ongoing evolution of digital and energy technologies.
