1. The Nanoscale Design and Material Scientific Research of Aerogels
1.1 Genesis and Basic Framework of Aerogel Materials

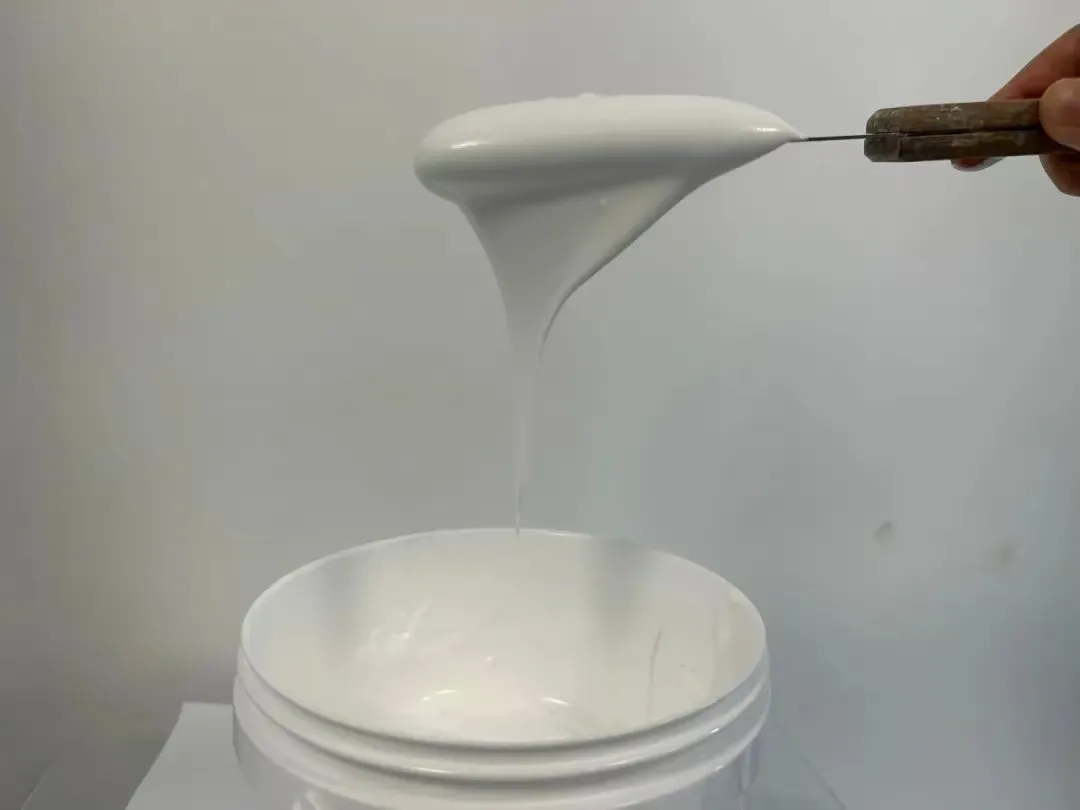

(Aerogel Insulation Coatings)
Aerogel insulation coatings represent a transformative advancement in thermal administration technology, rooted in the one-of-a-kind nanostructure of aerogels– ultra-lightweight, permeable materials originated from gels in which the liquid part is replaced with gas without falling down the solid network.
First established in the 1930s by Samuel Kistler, aerogels remained mainly laboratory curiosities for decades because of fragility and high manufacturing expenses.
Nevertheless, recent breakthroughs in sol-gel chemistry and drying strategies have made it possible for the assimilation of aerogel bits into flexible, sprayable, and brushable coating formulations, unlocking their potential for prevalent industrial application.
The core of aerogel’s phenomenal shielding capability depends on its nanoscale permeable framework: usually made up of silica (SiO â‚‚), the material exhibits porosity going beyond 90%, with pore dimensions mostly in the 2– 50 nm variety– well below the mean free course of air particles (~ 70 nm at ambient conditions).
This nanoconfinement dramatically minimizes aeriform thermal transmission, as air molecules can not effectively transfer kinetic power with crashes within such confined spaces.
Concurrently, the solid silica network is crafted to be extremely tortuous and discontinuous, decreasing conductive warmth transfer via the strong stage.
The result is a product with among the lowest thermal conductivities of any kind of solid understood– commonly in between 0.012 and 0.018 W/m · K at space temperature– going beyond traditional insulation materials like mineral wool, polyurethane foam, or increased polystyrene.
1.2 Advancement from Monolithic Aerogels to Composite Coatings
Early aerogels were created as breakable, monolithic blocks, limiting their use to specific niche aerospace and scientific applications.
The change towards composite aerogel insulation finishings has actually been driven by the need for adaptable, conformal, and scalable thermal obstacles that can be put on complex geometries such as pipes, shutoffs, and uneven devices surfaces.
Modern aerogel coatings integrate carefully milled aerogel granules (typically 1– 10 µm in diameter) spread within polymeric binders such as polymers, silicones, or epoxies.

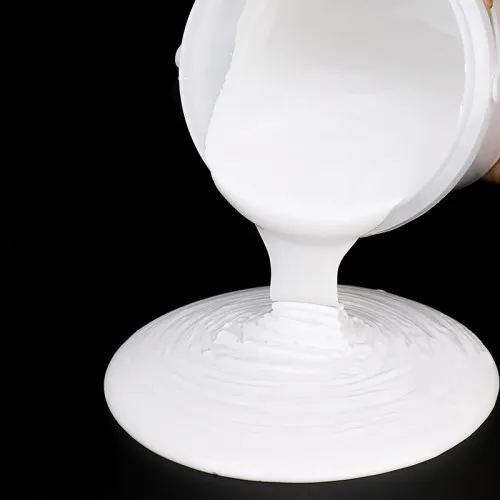

( Aerogel Insulation Coatings)
These hybrid formulations retain much of the inherent thermal performance of pure aerogels while obtaining mechanical effectiveness, bond, and weather condition resistance.
The binder stage, while somewhat boosting thermal conductivity, gives important cohesion and allows application by means of typical industrial approaches consisting of spraying, rolling, or dipping.
Most importantly, the quantity portion of aerogel particles is enhanced to stabilize insulation efficiency with film stability– normally varying from 40% to 70% by quantity in high-performance formulations.
This composite method protects the Knudsen impact (the reductions of gas-phase conduction in nanopores) while enabling tunable residential or commercial properties such as versatility, water repellency, and fire resistance.
2. Thermal Efficiency and Multimodal Warmth Transfer Suppression
2.1 Devices of Thermal Insulation at the Nanoscale
Aerogel insulation coatings accomplish their superior performance by concurrently reducing all 3 settings of heat transfer: transmission, convection, and radiation.
Conductive warm transfer is minimized with the mix of reduced solid-phase connection and the nanoporous structure that restrains gas particle activity.
Due to the fact that the aerogel network consists of extremely slim, interconnected silica strands (typically simply a couple of nanometers in diameter), the pathway for phonon transport (heat-carrying latticework resonances) is extremely limited.
This architectural layout successfully decouples adjacent areas of the finishing, decreasing thermal bridging.
Convective warmth transfer is naturally missing within the nanopores due to the lack of ability of air to form convection currents in such constrained spaces.
Even at macroscopic ranges, effectively used aerogel finishes eliminate air spaces and convective loops that afflict standard insulation systems, specifically in upright or above installments.
Radiative warm transfer, which comes to be considerable at elevated temperatures (> 100 ° C), is minimized with the incorporation of infrared opacifiers such as carbon black, titanium dioxide, or ceramic pigments.
These ingredients raise the finishing’s opacity to infrared radiation, spreading and absorbing thermal photons prior to they can traverse the finish thickness.
The synergy of these systems results in a material that supplies equivalent insulation efficiency at a portion of the density of conventional materials– typically achieving R-values (thermal resistance) numerous times higher per unit thickness.
2.2 Performance Across Temperature Level and Environmental Conditions
Among one of the most compelling benefits of aerogel insulation finishings is their constant efficiency throughout a wide temperature level spectrum, typically ranging from cryogenic temperatures (-200 ° C) to over 600 ° C, relying on the binder system utilized.
At low temperatures, such as in LNG pipelines or refrigeration systems, aerogel finishings prevent condensation and reduce warmth access extra efficiently than foam-based choices.
At high temperatures, specifically in commercial process devices, exhaust systems, or power generation centers, they protect underlying substrates from thermal degradation while reducing power loss.
Unlike organic foams that might decay or char, silica-based aerogel layers stay dimensionally stable and non-combustible, contributing to easy fire security approaches.
Moreover, their low water absorption and hydrophobic surface treatments (commonly accomplished using silane functionalization) stop performance degradation in moist or wet settings– a typical failing mode for fibrous insulation.
3. Formula Strategies and Practical Combination in Coatings
3.1 Binder Choice and Mechanical Building Engineering
The option of binder in aerogel insulation coatings is important to stabilizing thermal performance with resilience and application adaptability.
Silicone-based binders supply exceptional high-temperature stability and UV resistance, making them suitable for outside and commercial applications.
Polymer binders offer great adhesion to steels and concrete, along with simplicity of application and reduced VOC emissions, suitable for constructing envelopes and HVAC systems.
Epoxy-modified formulations enhance chemical resistance and mechanical strength, valuable in marine or destructive environments.
Formulators likewise incorporate rheology modifiers, dispersants, and cross-linking agents to make sure consistent particle distribution, avoid working out, and improve film development.
Flexibility is very carefully tuned to stay clear of breaking throughout thermal cycling or substrate contortion, specifically on vibrant frameworks like growth joints or vibrating equipment.
3.2 Multifunctional Enhancements and Smart Covering Potential
Past thermal insulation, contemporary aerogel coverings are being crafted with added functionalities.
Some formulas consist of corrosion-inhibiting pigments or self-healing representatives that prolong the life expectancy of metal substratums.
Others incorporate phase-change materials (PCMs) within the matrix to offer thermal power storage, smoothing temperature variations in buildings or electronic enclosures.
Arising research discovers the combination of conductive nanomaterials (e.g., carbon nanotubes) to make it possible for in-situ tracking of finishing stability or temperature circulation– paving the way for “wise” thermal monitoring systems.
These multifunctional capabilities setting aerogel finishes not simply as passive insulators but as active parts in intelligent facilities and energy-efficient systems.
4. Industrial and Commercial Applications Driving Market Adoption
4.1 Energy Efficiency in Building and Industrial Sectors
Aerogel insulation finishings are significantly deployed in business structures, refineries, and nuclear power plant to decrease energy usage and carbon exhausts.
Applied to steam lines, central heating boilers, and heat exchangers, they substantially reduced heat loss, improving system efficiency and minimizing fuel demand.
In retrofit situations, their thin profile enables insulation to be added without major architectural adjustments, protecting room and reducing downtime.
In domestic and commercial building, aerogel-enhanced paints and plasters are used on wall surfaces, roofing systems, and windows to boost thermal convenience and decrease a/c loads.
4.2 Niche and High-Performance Applications
The aerospace, vehicle, and electronics sectors take advantage of aerogel coatings for weight-sensitive and space-constrained thermal administration.
In electric automobiles, they protect battery packs from thermal runaway and exterior heat resources.
In electronics, ultra-thin aerogel layers shield high-power elements and avoid hotspots.
Their use in cryogenic storage, room habitats, and deep-sea tools underscores their dependability in extreme settings.
As making ranges and expenses decline, aerogel insulation layers are poised to end up being a keystone of next-generation lasting and durable facilities.
