Intro to Aluminum Nitride Ceramics
Aluminum nitride (AlN) is a high-performance ceramic product that has obtained widespread acknowledgment for its remarkable thermal conductivity, electric insulation, and mechanical stability at raised temperature levels. With a hexagonal wurtzite crystal framework, AlN exhibits a distinct combination of properties that make it the most perfect substratum material for applications in electronic devices, optoelectronics, power components, and high-temperature settings. Its capability to effectively dissipate heat while maintaining excellent dielectric strength positions AlN as a remarkable option to conventional ceramic substratums such as alumina and beryllium oxide. This short article explores the basic features of aluminum nitride ceramics, delves into construction methods, and highlights its critical duties across advanced technological domain names.

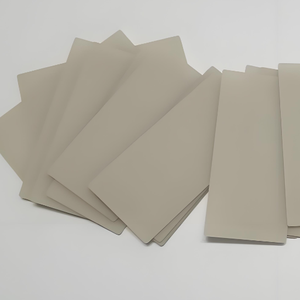

(Aluminum Nitride Ceramics)
Crystal Structure and Essential Properties
The performance of aluminum nitride as a substratum material is mainly dictated by its crystalline framework and innate physical properties. AlN takes on a wurtzite-type latticework composed of alternating light weight aluminum and nitrogen atoms, which contributes to its high thermal conductivity– typically exceeding 180 W/(m · K), with some high-purity samples attaining over 320 W/(m · K). This worth substantially goes beyond those of various other commonly used ceramic materials, consisting of alumina (~ 24 W/(m · K) )and silicon carbide (~ 90 W/(m · K)).
In addition to its thermal efficiency, AlN possesses a vast bandgap of approximately 6.2 eV, leading to exceptional electric insulation residential or commercial properties also at heats. It likewise demonstrates low thermal growth (CTE ≈ 4.5 × 10 ⁻⁶/ K), which very closely matches that of silicon and gallium arsenide, making it an ideal suit for semiconductor tool product packaging. Furthermore, AlN displays high chemical inertness and resistance to thaw steels, enhancing its suitability for harsh settings. These combined characteristics develop AlN as a top candidate for high-power electronic substrates and thermally handled systems.
Construction and Sintering Technologies
Producing top quality light weight aluminum nitride ceramics needs accurate powder synthesis and sintering strategies to accomplish thick microstructures with marginal contaminations. Because of its covalent bonding nature, AlN does not conveniently compress via traditional pressureless sintering. As a result, sintering help such as yttrium oxide (Y TWO O THREE), calcium oxide (CaO), or unusual planet elements are normally included in advertise liquid-phase sintering and improve grain border diffusion.
The manufacture procedure normally starts with the carbothermal reduction of aluminum oxide in a nitrogen environment to manufacture AlN powders. These powders are then crushed, formed via techniques like tape casting or injection molding, and sintered at temperature levels in between 1700 ° C and 1900 ° C under a nitrogen-rich atmosphere. Hot pressing or trigger plasma sintering (SPS) can further boost thickness and thermal conductivity by decreasing porosity and promoting grain placement. Advanced additive production strategies are additionally being explored to fabricate complex-shaped AlN elements with tailored thermal administration capacities.
Application in Electronic Product Packaging and Power Modules
Among one of the most noticeable uses aluminum nitride ceramics remains in electronic product packaging, particularly for high-power gadgets such as shielded gate bipolar transistors (IGBTs), laser diodes, and radio frequency (RF) amplifiers. As power thickness boost in modern electronic devices, effective warm dissipation ends up being vital to ensure integrity and durability. AlN substratums offer an ideal remedy by integrating high thermal conductivity with exceptional electrical isolation, stopping short circuits and thermal runaway conditions.
Additionally, AlN-based direct bonded copper (DBC) and energetic metal brazed (AMB) substrates are progressively employed in power module layouts for electric lorries, renewable resource inverters, and industrial motor drives. Contrasted to standard alumina or silicon nitride substratums, AlN uses quicker warm transfer and better compatibility with silicon chip coefficients of thermal growth, therefore reducing mechanical stress and anxiety and improving overall system efficiency. Continuous study intends to boost the bonding stamina and metallization strategies on AlN surface areas to more broaden its application extent.
Usage in Optoelectronic and High-Temperature Devices
Beyond electronic packaging, light weight aluminum nitride ceramics play a crucial duty in optoelectronic and high-temperature applications due to their openness to ultraviolet (UV) radiation and thermal security. AlN is widely utilized as a substrate for deep UV light-emitting diodes (LEDs) and laser diodes, particularly in applications calling for sanitation, noticing, and optical communication. Its vast bandgap and low absorption coefficient in the UV array make it an optimal candidate for supporting aluminum gallium nitride (AlGaN)-based heterostructures.
Furthermore, AlN’s ability to function dependably at temperature levels exceeding 1000 ° C makes it ideal for usage in sensing units, thermoelectric generators, and elements revealed to severe thermal lots. In aerospace and defense markets, AlN-based sensor plans are employed in jet engine surveillance systems and high-temperature control systems where standard materials would certainly fall short. Constant innovations in thin-film deposition and epitaxial development methods are increasing the capacity of AlN in next-generation optoelectronic and high-temperature integrated systems.
( Aluminum Nitride Ceramics)
Ecological Security and Long-Term Integrity
A crucial factor to consider for any type of substrate product is its long-lasting reliability under operational stresses. Light weight aluminum nitride shows remarkable ecological stability compared to several other porcelains. It is highly resistant to rust from acids, alkalis, and molten metals, guaranteeing resilience in hostile chemical settings. Nonetheless, AlN is susceptible to hydrolysis when subjected to dampness at elevated temperatures, which can deteriorate its surface area and decrease thermal performance.
To reduce this issue, protective finishes such as silicon nitride (Si four N FOUR), light weight aluminum oxide, or polymer-based encapsulation layers are commonly related to improve wetness resistance. Furthermore, careful securing and product packaging techniques are implemented throughout device setting up to maintain the honesty of AlN substrates throughout their service life. As environmental regulations become extra stringent, the non-toxic nature of AlN also positions it as a preferred alternative to beryllium oxide, which positions health dangers during handling and disposal.
Verdict
Light weight aluminum nitride ceramics represent a class of advanced materials distinctively matched to address the growing needs for efficient thermal administration and electric insulation in high-performance electronic and optoelectronic systems. Their extraordinary thermal conductivity, chemical stability, and compatibility with semiconductor innovations make them one of the most perfect substrate material for a variety of applications– from auto power modules to deep UV LEDs and high-temperature sensors. As fabrication innovations remain to develop and cost-efficient production techniques mature, the adoption of AlN substrates is anticipated to rise substantially, driving advancement in next-generation digital and photonic devices.
