1. Material Basics and Microstructural Layout
1.1 Composition and Crystallographic Security of Alumina

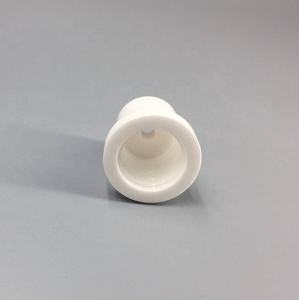

(Alumina Ceramic Nozzles)
Alumina (Al Two O TWO), especially in its alpha stage, is a completely oxidized ceramic with a corundum-type hexagonal close-packed structure, supplying outstanding thermal stability, chemical inertness, and mechanical stamina at raised temperatures.
High-purity alumina (generally 95– 99.9% Al Two O FOUR) is preferred for nozzle applications due to its minimal impurity content, which lowers grain boundary weakening and enhances resistance to thermal and chemical degradation.
The microstructure, consisting of fine, equiaxed grains, is crafted throughout sintering to lessen porosity and optimize thickness, straight affecting the nozzle’s disintegration resistance and architectural integrity under high-velocity liquid flow.
Ingredients such as MgO are often introduced in trace total up to hinder unusual grain development during sintering, making sure an uniform microstructure that sustains long-term reliability.
1.2 Mechanical and Thermal Characteristics Relevant to Nozzle Efficiency
Alumina ceramics exhibit a Vickers firmness exceeding 1800 HV, making them very resistant to abrasive wear from particulate-laden liquids, a vital attribute in applications such as sandblasting and unpleasant waterjet cutting.
With a flexural toughness of 300– 500 MPa and a compressive stamina over 2 GPa, alumina nozzles maintain dimensional stability under high-pressure procedure, normally varying from 100 to 400 MPa in commercial systems.
Thermally, alumina preserves its mechanical residential or commercial properties up to 1600 ° C, with a low thermal development coefficient (~ 8 × 10 ⁻⁶/ K) that offers excellent resistance to thermal shock– necessary when subjected to rapid temperature changes throughout startup or shutdown cycles.
Its thermal conductivity (~ 30 W/m · K) suffices to dissipate local warmth without inducing thermal gradients that can result in splitting, stabilizing insulation and warmth management needs.
2. Production Processes and Geometric Accuracy
2.1 Shaping and Sintering Methods for Nozzle Fabrication
The manufacturing of alumina ceramic nozzles starts with high-purity alumina powder, which is refined right into an eco-friendly body using approaches such as cold isostatic pressing (CIP), shot molding, or extrusion, relying on the preferred geometry and set dimension.
( Alumina Ceramic Nozzles)
Cold isostatic pushing uses consistent stress from all instructions, yielding an uniform density circulation critical for lessening flaws during sintering.
Injection molding is utilized for intricate nozzle shapes with inner tapers and great orifices, allowing high dimensional precision and reproducibility in automation.
After shaping, the eco-friendly compacts go through a two-stage thermal treatment: debinding to get rid of organic binders and sintering at temperatures between 1500 ° C and 1650 ° C to achieve near-theoretical density via solid-state diffusion.
Exact control of sintering atmosphere and heating/cooling rates is essential to stop bending, breaking, or grain coarsening that might endanger nozzle performance.
2.2 Machining, Sprucing Up, and Quality Assurance
Post-sintering, alumina nozzles commonly need accuracy machining to attain tight tolerances, particularly in the orifice area where circulation dynamics are most sensitive to surface area finish and geometry.
Ruby grinding and lapping are utilized to improve inner and external surfaces, attaining surface roughness worths listed below 0.1 µm, which minimizes circulation resistance and stops fragment build-up.
The orifice, commonly varying from 0.3 to 3.0 mm in diameter, should be free of micro-cracks and chamfers to make sure laminar circulation and constant spray patterns.
Non-destructive screening techniques such as optical microscopy, X-ray evaluation, and pressure biking tests are used to confirm architectural integrity and performance uniformity before implementation.
Personalized geometries, consisting of convergent-divergent (de Laval) profiles for supersonic circulation or multi-hole ranges for follower spray patterns, are increasingly fabricated using innovative tooling and computer-aided design (CAD)-driven production.
3. Useful Benefits Over Alternate Nozzle Materials
3.1 Superior Disintegration and Corrosion Resistance
Contrasted to metallic (e.g., tungsten carbide, stainless steel) or polymer nozzles, alumina exhibits much greater resistance to rough wear, particularly in environments involving silica sand, garnet, or other hard abrasives used in surface preparation and cutting.
Steel nozzles deteriorate swiftly because of micro-fracturing and plastic deformation, calling for frequent replacement, whereas alumina nozzles can last 3– 5 times much longer, dramatically minimizing downtime and functional costs.
Additionally, alumina is inert to many acids, antacid, and solvents, making it appropriate for chemical splashing, etching, and cleaning procedures where metal elements would certainly wear away or contaminate the fluid.
This chemical stability is specifically useful in semiconductor production, pharmaceutical processing, and food-grade applications calling for high purity.
3.2 Thermal and Electrical Insulation Residence
Alumina’s high electric resistivity (> 10 ¹⁴ Ω · centimeters) makes it suitable for use in electrostatic spray covering systems, where it protects against cost leak and makes sure consistent paint atomization.
Its thermal insulation capacity enables risk-free procedure in high-temperature splashing environments, such as flame splashing or thermal cleansing, without warmth transfer to surrounding elements.
Unlike steels, alumina does not catalyze unwanted chemical reactions in reactive fluid streams, maintaining the honesty of delicate formulas.
4. Industrial Applications and Technological Influence
4.1 Duties in Abrasive Jet Machining and Surface Area Therapy
Alumina ceramic nozzles are essential in unpleasant blasting systems for corrosion removal, paint stripping, and surface texturing in auto, aerospace, and building and construction sectors.
Their ability to maintain a constant orifice diameter over expanded usage makes certain uniform rough rate and effect angle, directly affecting surface area finish quality and procedure repeatability.
In abrasive waterjet cutting, alumina focusing tubes lead the high-pressure water-abrasive combination, standing up to abrasive forces that would swiftly degrade softer products.
4.2 Usage in Additive Manufacturing, Spray Finishing, and Liquid Control
In thermal spray systems, such as plasma and flame spraying, alumina nozzles direct high-temperature gas flows and liquified bits onto substratums, taking advantage of their thermal shock resistance and dimensional security.
They are likewise utilized in precision spray nozzles for farming chemicals, inkjet systems, and fuel atomization, where wear resistance ensures long-term application precision.
In 3D printing, specifically in binder jetting and material extrusion, alumina nozzles deliver great powders or viscous pastes with marginal obstructing or use.
Arising applications consist of microfluidic systems and lab-on-a-chip tools, where miniaturized alumina elements offer resilience and biocompatibility.
In recap, alumina ceramic nozzles represent a crucial junction of products scientific research and commercial engineering.
Their outstanding combination of firmness, thermal stability, and chemical resistance enables dependable performance in some of the most demanding fluid handling atmospheres.
As commercial procedures press toward higher pressures, finer resistances, and longer service periods, alumina porcelains remain to set the requirement for durable, high-precision flow control components.
