1. Product Basics and Microstructural Attributes of Alumina Ceramics
1.1 Composition, Purity Qualities, and Crystallographic Residence

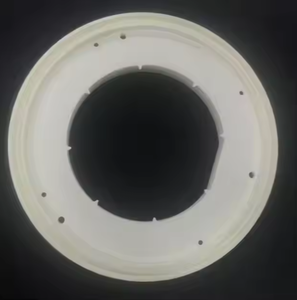

(Alumina Ceramic Wear Liners)
Alumina (Al â‚‚ O THREE), or light weight aluminum oxide, is among the most extensively used technical porcelains in commercial design because of its outstanding balance of mechanical stamina, chemical security, and cost-effectiveness.
When crafted right into wear linings, alumina porcelains are commonly made with purity levels varying from 85% to 99.9%, with higher pureness representing improved firmness, wear resistance, and thermal performance.
The dominant crystalline phase is alpha-alumina, which embraces a hexagonal close-packed (HCP) framework characterized by strong ionic and covalent bonding, contributing to its high melting point (~ 2072 ° C )and low thermal conductivity.
Microstructurally, alumina ceramics include fine, equiaxed grains whose size and distribution are managed throughout sintering to enhance mechanical homes.
Grain dimensions generally vary from submicron to several micrometers, with better grains usually enhancing crack toughness and resistance to fracture proliferation under abrasive filling.
Small additives such as magnesium oxide (MgO) are usually presented in trace total up to hinder unusual grain development throughout high-temperature sintering, making sure uniform microstructure and dimensional stability.
The resulting product displays a Vickers firmness of 1500– 2000 HV, considerably exceeding that of solidified steel (typically 600– 800 HV), making it incredibly immune to surface deterioration in high-wear settings.
1.2 Mechanical and Thermal Efficiency in Industrial Conditions
Alumina ceramic wear linings are selected mostly for their superior resistance to rough, abrasive, and moving wear mechanisms common wholesale material taking care of systems.
They have high compressive strength (approximately 3000 MPa), good flexural strength (300– 500 MPa), and excellent rigidity (Young’s modulus of ~ 380 Grade point average), allowing them to endure extreme mechanical loading without plastic deformation.
Although inherently fragile compared to steels, their low coefficient of friction and high surface solidity lessen particle attachment and reduce wear prices by orders of size relative to steel or polymer-based alternatives.
Thermally, alumina maintains structural stability up to 1600 ° C in oxidizing ambiences, permitting use in high-temperature processing settings such as kiln feed systems, boiler ducting, and pyroprocessing equipment.

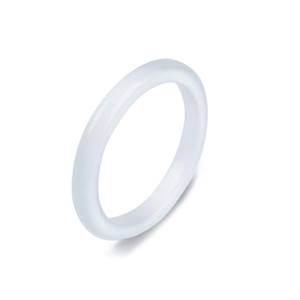

( Alumina Ceramic Wear Liners)
Its low thermal development coefficient (~ 8 × 10 â»â¶/ K) adds to dimensional stability during thermal biking, decreasing the risk of breaking because of thermal shock when appropriately set up.
Furthermore, alumina is electrically protecting and chemically inert to a lot of acids, antacid, and solvents, making it ideal for corrosive settings where metal linings would certainly weaken rapidly.
These consolidated homes make alumina ceramics suitable for safeguarding important framework in mining, power generation, concrete manufacturing, and chemical handling markets.
2. Production Processes and Layout Combination Strategies
2.1 Shaping, Sintering, and Quality Control Protocols
The production of alumina ceramic wear linings includes a series of accuracy manufacturing steps developed to attain high thickness, marginal porosity, and consistent mechanical efficiency.
Raw alumina powders are processed via milling, granulation, and forming strategies such as dry pressing, isostatic pressing, or extrusion, relying on the preferred geometry– floor tiles, plates, pipelines, or custom-shaped segments.
Eco-friendly bodies are after that sintered at temperatures between 1500 ° C and 1700 ° C in air, advertising densification through solid-state diffusion and achieving relative densities exceeding 95%, usually approaching 99% of theoretical density.
Full densification is critical, as residual porosity works as anxiety concentrators and speeds up wear and fracture under service conditions.
Post-sintering operations might include ruby grinding or splashing to achieve limited dimensional resistances and smooth surface finishes that reduce rubbing and particle trapping.
Each set undertakes rigorous quality control, consisting of X-ray diffraction (XRD) for phase evaluation, scanning electron microscopy (SEM) for microstructural assessment, and firmness and bend screening to validate conformity with international requirements such as ISO 6474 or ASTM B407.
2.2 Placing Strategies and System Compatibility Factors To Consider
Reliable integration of alumina wear liners right into industrial equipment requires mindful interest to mechanical accessory and thermal development compatibility.
Usual setup methods consist of adhesive bonding utilizing high-strength ceramic epoxies, mechanical securing with studs or anchors, and embedding within castable refractory matrices.
Glue bonding is extensively used for level or delicately bent surface areas, offering uniform tension circulation and resonance damping, while stud-mounted systems permit very easy replacement and are chosen in high-impact zones.
To suit differential thermal growth between alumina and metal substratums (e.g., carbon steel), crafted gaps, adaptable adhesives, or certified underlayers are integrated to stop delamination or splitting during thermal transients.
Designers need to also consider edge defense, as ceramic floor tiles are at risk to chipping at subjected corners; services consist of diagonal edges, metal shrouds, or overlapping ceramic tile configurations.
Appropriate installation guarantees lengthy service life and makes best use of the safety function of the lining system.
3. Put On Mechanisms and Efficiency Evaluation in Service Environments
3.1 Resistance to Abrasive, Erosive, and Influence Loading
Alumina ceramic wear linings master settings controlled by three main wear devices: two-body abrasion, three-body abrasion, and particle erosion.
In two-body abrasion, hard particles or surface areas directly gouge the lining surface, a typical event in chutes, receptacles, and conveyor changes.
Three-body abrasion includes loose fragments trapped in between the lining and relocating product, leading to rolling and scratching action that gradually removes product.
Erosive wear takes place when high-velocity bits impinge on the surface area, particularly in pneumatic conveying lines and cyclone separators.
As a result of its high hardness and low fracture durability, alumina is most reliable in low-impact, high-abrasion scenarios.
It executes extremely well against siliceous ores, coal, fly ash, and concrete clinker, where wear rates can be minimized by 10– 50 times compared to mild steel linings.
However, in applications including duplicated high-energy effect, such as primary crusher chambers, crossbreed systems combining alumina ceramic tiles with elastomeric supports or metallic guards are frequently employed to absorb shock and avoid fracture.
3.2 Field Testing, Life Cycle Analysis, and Failure Setting Evaluation
Performance analysis of alumina wear liners entails both lab testing and area tracking.
Standard examinations such as the ASTM G65 completely dry sand rubber wheel abrasion examination provide comparative wear indices, while personalized slurry erosion rigs simulate site-specific problems.
In industrial settings, put on rate is usually measured in mm/year or g/kWh, with service life forecasts based upon preliminary density and observed degradation.
Failure settings include surface sprucing up, micro-cracking, spalling at edges, and total floor tile dislodgement as a result of sticky destruction or mechanical overload.
Root cause evaluation typically discloses installment errors, inappropriate quality selection, or unanticipated impact lots as key factors to premature failure.
Life process expense analysis constantly demonstrates that regardless of higher preliminary expenses, alumina liners offer premium overall expense of ownership as a result of prolonged replacement intervals, decreased downtime, and lower maintenance labor.
4. Industrial Applications and Future Technological Advancements
4.1 Sector-Specific Implementations Throughout Heavy Industries
Alumina ceramic wear linings are released throughout a broad range of industrial markets where product degradation presents functional and economic difficulties.
In mining and mineral processing, they safeguard transfer chutes, mill liners, hydrocyclones, and slurry pumps from rough slurries having quartz, hematite, and various other hard minerals.
In nuclear power plant, alumina floor tiles line coal pulverizer ducts, boiler ash hoppers, and electrostatic precipitator elements revealed to fly ash erosion.
Concrete makers make use of alumina liners in raw mills, kiln inlet zones, and clinker conveyors to deal with the extremely unpleasant nature of cementitious products.
The steel sector utilizes them in blast heating system feed systems and ladle shadows, where resistance to both abrasion and modest thermal tons is important.
Also in less traditional applications such as waste-to-energy plants and biomass handling systems, alumina ceramics offer durable defense versus chemically hostile and fibrous products.
4.2 Arising Patterns: Compound Solutions, Smart Liners, and Sustainability
Current research focuses on enhancing the strength and performance of alumina wear systems through composite style.
Alumina-zirconia (Al Two O FOUR-ZrO TWO) composites take advantage of improvement toughening from zirconia to enhance split resistance, while alumina-titanium carbide (Al two O TWO-TiC) grades provide improved performance in high-temperature moving wear.
An additional development involves installing sensors within or below ceramic liners to keep track of wear development, temperature level, and effect frequency– allowing predictive maintenance and digital double integration.
From a sustainability viewpoint, the extended service life of alumina linings minimizes product intake and waste generation, lining up with circular economy principles in commercial operations.
Recycling of invested ceramic linings into refractory accumulations or building and construction materials is additionally being explored to minimize ecological footprint.
In conclusion, alumina ceramic wear liners represent a foundation of contemporary industrial wear protection modern technology.
Their exceptional solidity, thermal security, and chemical inertness, combined with mature manufacturing and installation methods, make them indispensable in combating product destruction throughout hefty markets.
As material scientific research advances and digital surveillance becomes extra incorporated, the future generation of wise, resilient alumina-based systems will certainly further boost functional performance and sustainability in rough environments.
