1. Essential Framework and Product Structure
1.1 The Nanoscale Design of Aerogels

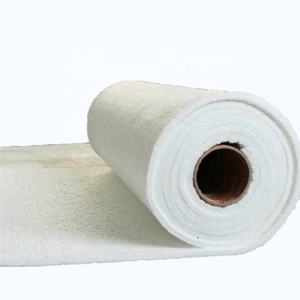

(Aerogel Blanket)
Aerogel blankets are advanced thermal insulation materials built upon an unique nanostructured framework, where a solid silica or polymer network spans an ultra-high porosity quantity– usually going beyond 90% air.
This framework stems from the sol-gel procedure, in which a liquid precursor (typically tetramethyl orthosilicate or TMOS) undergoes hydrolysis and polycondensation to create a damp gel, adhered to by supercritical or ambient pressure drying out to eliminate the fluid without collapsing the fragile permeable network.
The resulting aerogel includes interconnected nanoparticles (3– 5 nm in diameter) developing pores on the scale of 10– 50 nm, small sufficient to reduce air particle motion and thus decrease conductive and convective warm transfer.
This phenomenon, referred to as Knudsen diffusion, drastically lowers the efficient thermal conductivity of the material, often to worths between 0.012 and 0.018 W/(m · K) at room temperature level– among the most affordable of any solid insulator.
In spite of their low thickness (as low as 0.003 g/cm TWO), pure aerogels are naturally fragile, necessitating reinforcement for sensible use in versatile covering kind.
1.2 Reinforcement and Composite Design
To conquer fragility, aerogel powders or monoliths are mechanically incorporated right into fibrous substrates such as glass fiber, polyester, or aramid felts, creating a composite “covering” that preserves exceptional insulation while gaining mechanical effectiveness.
The strengthening matrix provides tensile stamina, versatility, and dealing with longevity, allowing the product to be cut, bent, and set up in complex geometries without substantial efficiency loss.
Fiber material usually ranges from 5% to 20% by weight, very carefully balanced to lessen thermal connecting– where fibers perform warm across the covering– while ensuring architectural integrity.
Some progressed designs integrate hydrophobic surface treatments (e.g., trimethylsilyl teams) to prevent moisture absorption, which can weaken insulation efficiency and promote microbial development.
These modifications permit aerogel coverings to preserve steady thermal properties even in humid atmospheres, increasing their applicability past regulated research laboratory problems.
2. Production Processes and Scalability

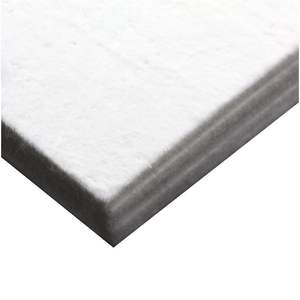

( Aerogel Blanket)
2.1 From Sol-Gel to Roll-to-Roll Manufacturing
The production of aerogel blankets begins with the development of a wet gel within a coarse mat, either by fertilizing the substrate with a liquid precursor or by co-forming the gel and fiber network all at once.
After gelation, the solvent need to be removed under conditions that protect against capillary stress from falling down the nanopores; historically, this required supercritical CO â‚‚ drying, an expensive and energy-intensive procedure.
Recent developments have enabled ambient stress drying via surface modification and solvent exchange, considerably minimizing manufacturing expenses and making it possible for constant roll-to-roll production.
In this scalable procedure, long rolls of fiber floor covering are constantly covered with forerunner remedy, gelled, dried out, and surface-treated, enabling high-volume output appropriate for commercial applications.
This shift has actually been pivotal in transitioning aerogel coverings from specific niche lab materials to readily feasible products made use of in building, energy, and transport sectors.
2.2 Quality Control and Efficiency Consistency
Making certain uniform pore structure, consistent thickness, and reputable thermal efficiency throughout huge manufacturing sets is vital for real-world implementation.
Makers use rigorous quality assurance actions, consisting of laser scanning for density variation, infrared thermography for thermal mapping, and gravimetric evaluation for dampness resistance.
Batch-to-batch reproducibility is necessary, specifically in aerospace and oil & gas industries, where failing due to insulation break down can have severe consequences.
Furthermore, standard testing according to ASTM C177 (heat flow meter) or ISO 9288 ensures precise coverage of thermal conductivity and enables reasonable comparison with traditional insulators like mineral wool or foam.
3. Thermal and Multifunctional Properties
3.1 Superior Insulation Across Temperature Level Ranges
Aerogel blankets display outstanding thermal performance not only at ambient temperature levels but likewise throughout extreme varieties– from cryogenic problems listed below -100 ° C to high temperatures going beyond 600 ° C, relying on the base material and fiber kind.
At cryogenic temperature levels, traditional foams may break or shed effectiveness, whereas aerogel coverings continue to be flexible and maintain low thermal conductivity, making them suitable for LNG pipes and storage tanks.
In high-temperature applications, such as commercial heaters or exhaust systems, they supply effective insulation with minimized density contrasted to bulkier alternatives, saving space and weight.
Their low emissivity and capability to show radiant heat better improve performance in radiant obstacle arrangements.
This broad operational envelope makes aerogel blankets distinctly versatile among thermal administration solutions.
3.2 Acoustic and Fireproof Qualities
Beyond thermal insulation, aerogel coverings show remarkable sound-dampening homes as a result of their open, tortuous pore structure that dissipates acoustic energy through thick losses.
They are increasingly used in automobile and aerospace cabins to minimize environmental pollution without adding substantial mass.
In addition, most silica-based aerogel coverings are non-combustible, achieving Course A fire ratings, and do not release poisonous fumes when exposed to flame– important for constructing safety and security and public facilities.
Their smoke thickness is extremely low, improving presence throughout emergency discharges.
4. Applications in Market and Emerging Technologies
4.1 Energy Efficiency in Structure and Industrial Systems
Aerogel coverings are transforming energy efficiency in style and industrial engineering by enabling thinner, higher-performance insulation layers.
In buildings, they are made use of in retrofitting historical frameworks where wall surface thickness can not be boosted, or in high-performance façades and windows to minimize thermal bridging.
In oil and gas, they insulate pipelines lugging warm fluids or cryogenic LNG, lowering power loss and protecting against condensation or ice formation.
Their lightweight nature additionally reduces structural load, especially helpful in overseas systems and mobile units.
4.2 Aerospace, Automotive, and Consumer Applications
In aerospace, aerogel blankets safeguard spacecraft from extreme temperature level fluctuations during re-entry and guard sensitive tools from thermal biking precede.
NASA has actually used them in Mars wanderers and astronaut matches for passive thermal policy.
Automotive producers integrate aerogel insulation into electrical automobile battery packs to prevent thermal runaway and boost safety and security and performance.
Customer items, including outdoor clothing, footwear, and outdoor camping gear, currently feature aerogel cellular linings for superior heat without bulk.
As manufacturing prices decline and sustainability improves, aerogel coverings are poised to end up being traditional solutions in international initiatives to reduce energy intake and carbon discharges.
Finally, aerogel coverings stand for a merging of nanotechnology and useful design, supplying unrivaled thermal efficiency in an adaptable, durable layout.
Their ability to save power, room, and weight while keeping safety and security and environmental compatibility settings them as crucial enablers of lasting modern technology across varied sectors.
